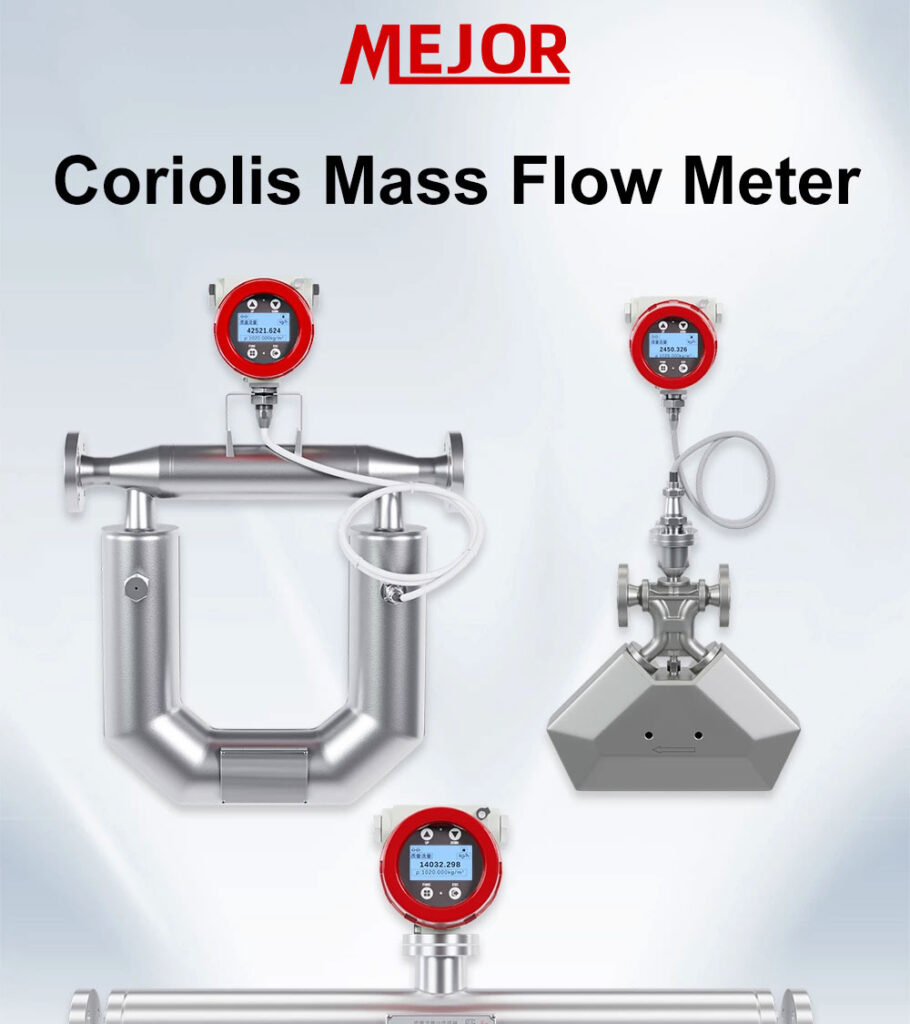

Coriolis mass Flowmeter is a new type of flow measurement instrument developed according to the principle of Coriolis force. It can directly measure the mass flow rate of fluid in closed tubeline, medium density and temperature. It can be widely used in chemical industry, petroleum, food, pharmaceutical, paper making and other industries.The implementation standard of this product is GB/T 31130-2014 Coriolis mass Flow Meter.
Characteristics
MODBUS RTU Communication Protocol
Convenient Human-Machine Interface
Temperature and Pressure Compensation
Directly Measurable
Small Amplitude of the Measuring Tube

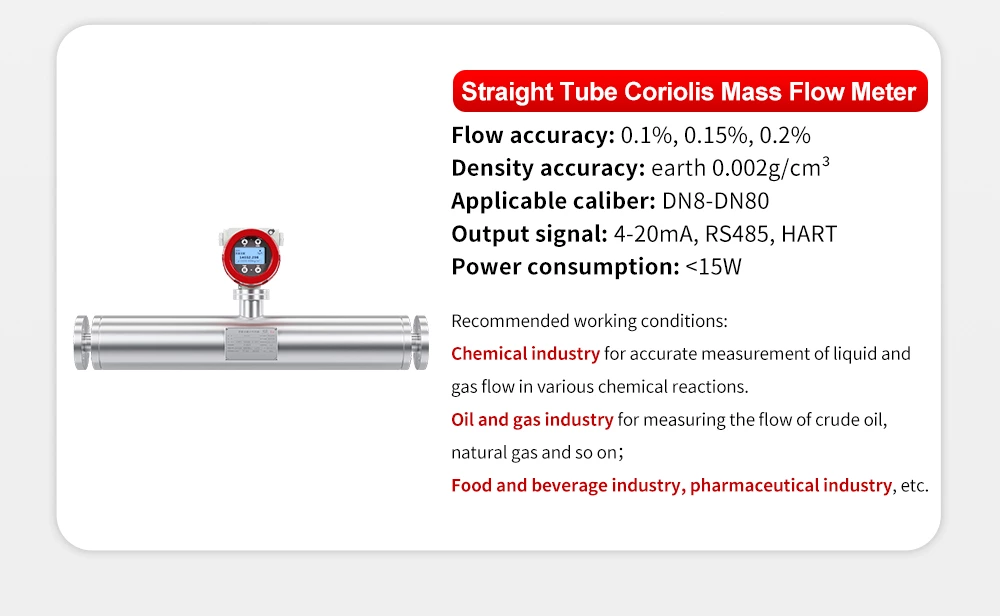

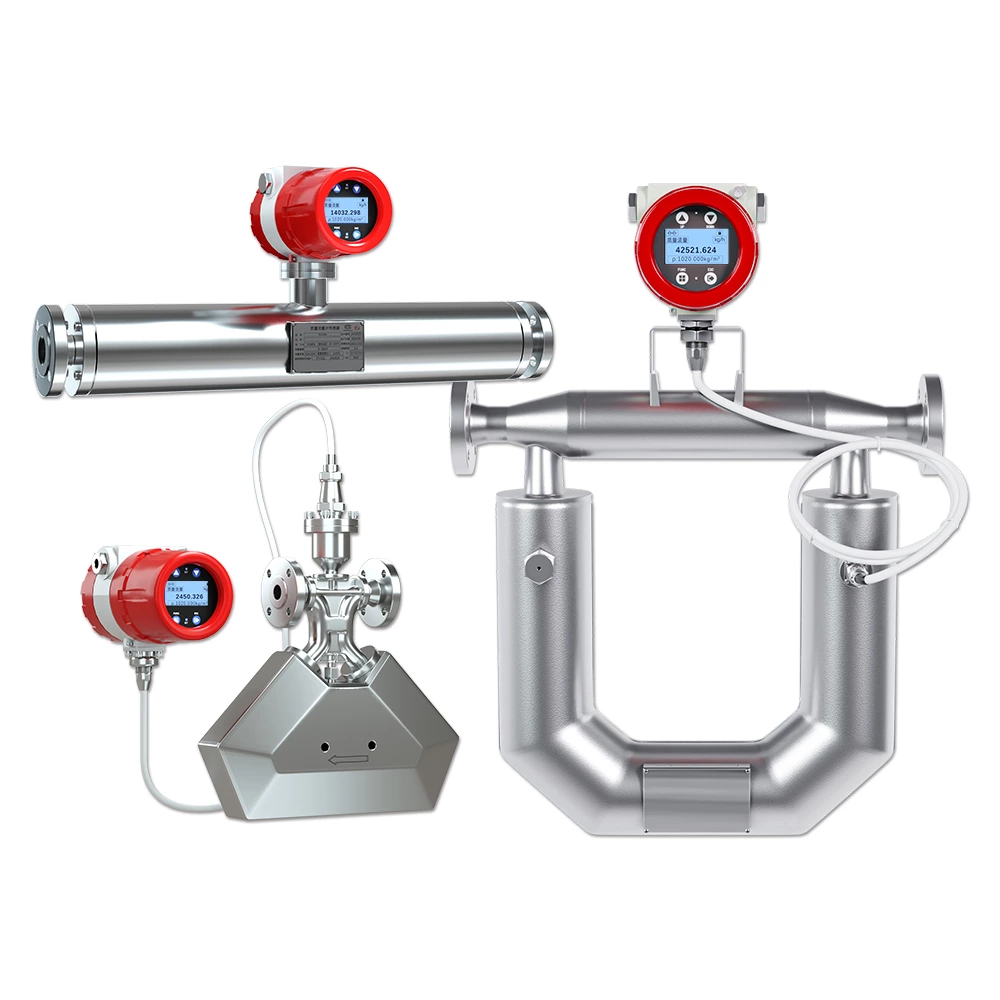

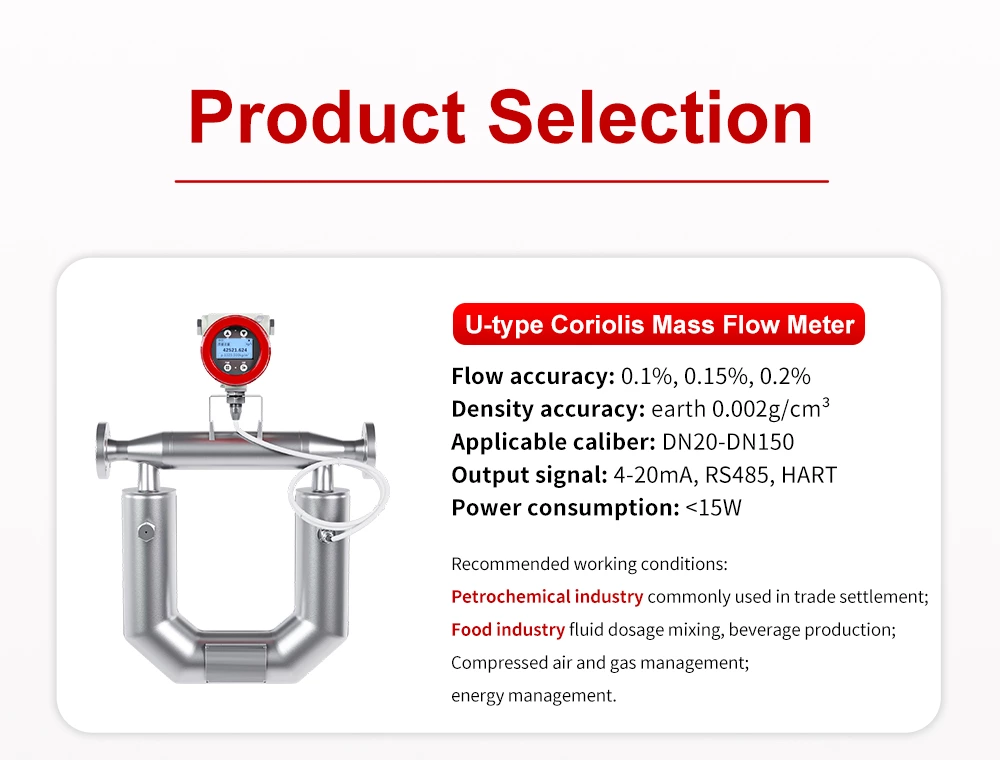

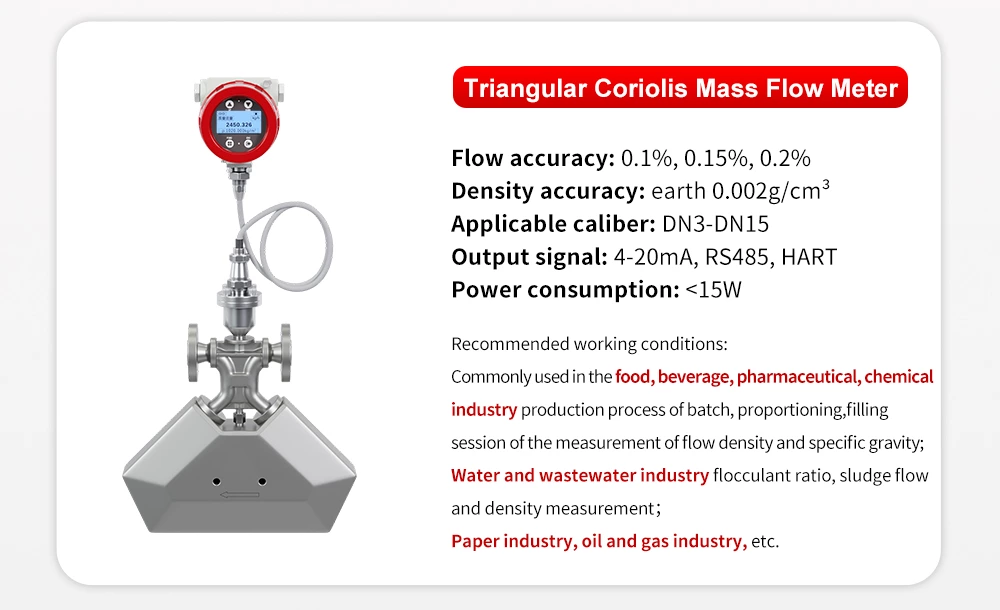

| Diameter | U-type:DN20~DN150; Triangular:DN3~DN15; Straight Tube:DN8~DN80 |
| Measurand | Mass flow,density,temperature |
| Density accuracy | earth 0.002g/cm³ |
| Accuracy | 0.1%,0.15%,0.2% |
| Temperature | -40~+60℃ |
| Power consumption | <15W |
| Power supply | 220VAC ; 24VDC |
| Signal output | 4~20mA, RS485, HART |
| Ingress protection | IP67 |
| Density range | (0.3~3.000)g/cm³ |
| Repeatability | 1/2 of the measurement error |
| Medium temperature | Standard type: (-50～200)℃, (-20～200)℃; High temperature type: (-50～350)°C; Low-temperature type: (-200～200)°C |
| Process pressure | (0~4.0)MPa |
| Humidity | 35%~95% |
| Transmission output | (4～20) mA, output load (250～600) Ω |
