Specification Product Glass pH sensor Model MEJ-PH5015 Measurement range 0 ~ 14 pH Zero potential point 7 ± 0.5 pH Slope > 98% Membrane resistance <250ΜΩ P
Characteristics:
Zero potential point: 7 ± 0.5 pH
Conversion coefficient: > 98%
Installation size: Pg13.5
Pressure: Up to 6 bar at 25 ℃
Temperature: 0 ~ 130℃

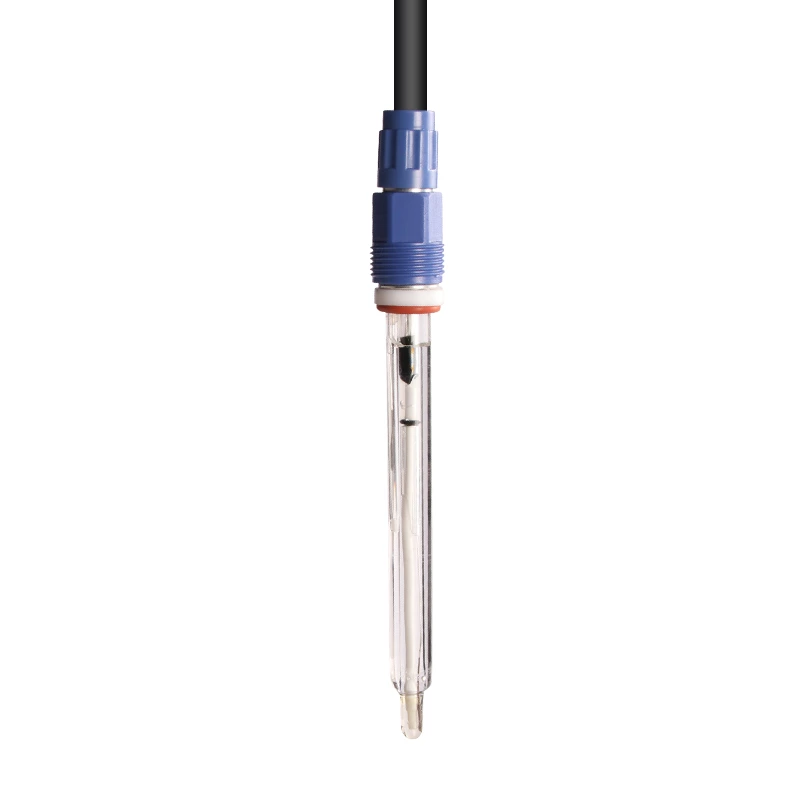

Intro to The MEJ-PH-5015 Glass pH sensor
Product advantages:
Adopt international advanced solid dielectric and large area PTFE liquid junction, no clogging, easy maintenance.
Long distance reference diffusion path, extends electrode life greatly in harsh environments.
Using PPS / PC shell, Up and down 3/4NPT pipe thread, easy installation, no need sheath, saving installation costs.
Electrode is made of high quality low-noise cable, make signal output length greater than 40 meters or more, without interference.
No supplemental dielectric, a little maintenance.
High accuracy, fast response, good repeatability.
With silver ions Ag / AgCL reference electrode.
Proper operation to extend service life
Side or vertically installation to the reaction tank or pipe.
| Product | Glass pH sensor |
| Model | MEJ-PH5015 |
| Measurement range | 0 ~ 14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 98% |
| Membrane resistance | <250ΜΩ |
| Practical response time | < 1 min |
| Salt bridge | Porous ceramic core/ porous Teflon |
| Installation size | Pg13.5 |
| Heat resistance | 0 ~ 130℃ |
| Pressure resistance | Up to 2.5 Bar at 25 ℃ |
| Temperature compensation | NTC 10 K/Pt100/Pt1000 |
