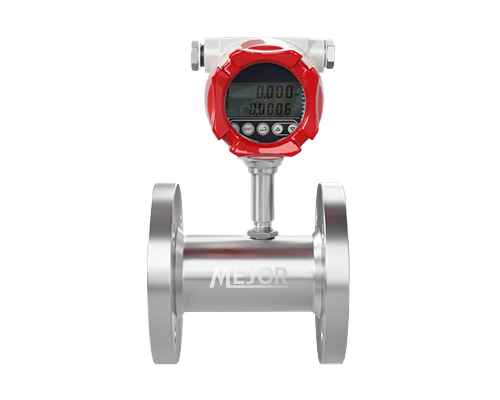

Turbine flowmeter flange connection
Specification Product Turbine flowmeter Model MEJOR240 Diameter Nominal DN4~DN200 Nominal Pressure 1.0MPa~6.3MPa Accuracy 0.5%R, 1.0%R Medium viscosity Less than 5×10-6m2/s (for the liquid with >5×10
MEJOR240 series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe.
| Product | Turbine flowmeter |
| Model | MEJOR240 |
| Diameter Nominal | DN4~DN200 |
| Nominal Pressure | 1.0MPa~6.3MPa |
| Accuracy | 0.5%R, 1.0%R |
| Medium viscosity | Less than 5×10-6m2/s |
| (for the liquid with >5×10-6m2/s, | |
| the flowermeter needs to be calibrated before using) | |
| Medium Temperature | -20℃～＋120℃ |
| Power Supply | 3.6V lithium battery; 12VDC; 24VDC |
| Output Signal | Pulse, 4-20mA, RS485 Modbus |
| Ingress protection | IP65 |
