FCC-300 Coriolis Mass Flowmeter

MEJ-FCC-300 Coriolis Mass Flowmeter

Product Information

FCC-300 Coriolis Mass Flowmeter

MODBUS RTU Communication Protocol
Convenient Human-Machine Interface
Temperature and Pressure Compensation
Directly Measurable
Small Amplitude of the Measuring Tube

The FCC-300 Coriolis mass flowmeter is based on the principle of Coriolis force. When fluid flows in a vibrating measuring tube, a Coriolis force proportional to the mass flow rate is generated. By accurately detecting this mechanical signal, direct measurement of fluid mass flow rate can be achieved.

Specifications

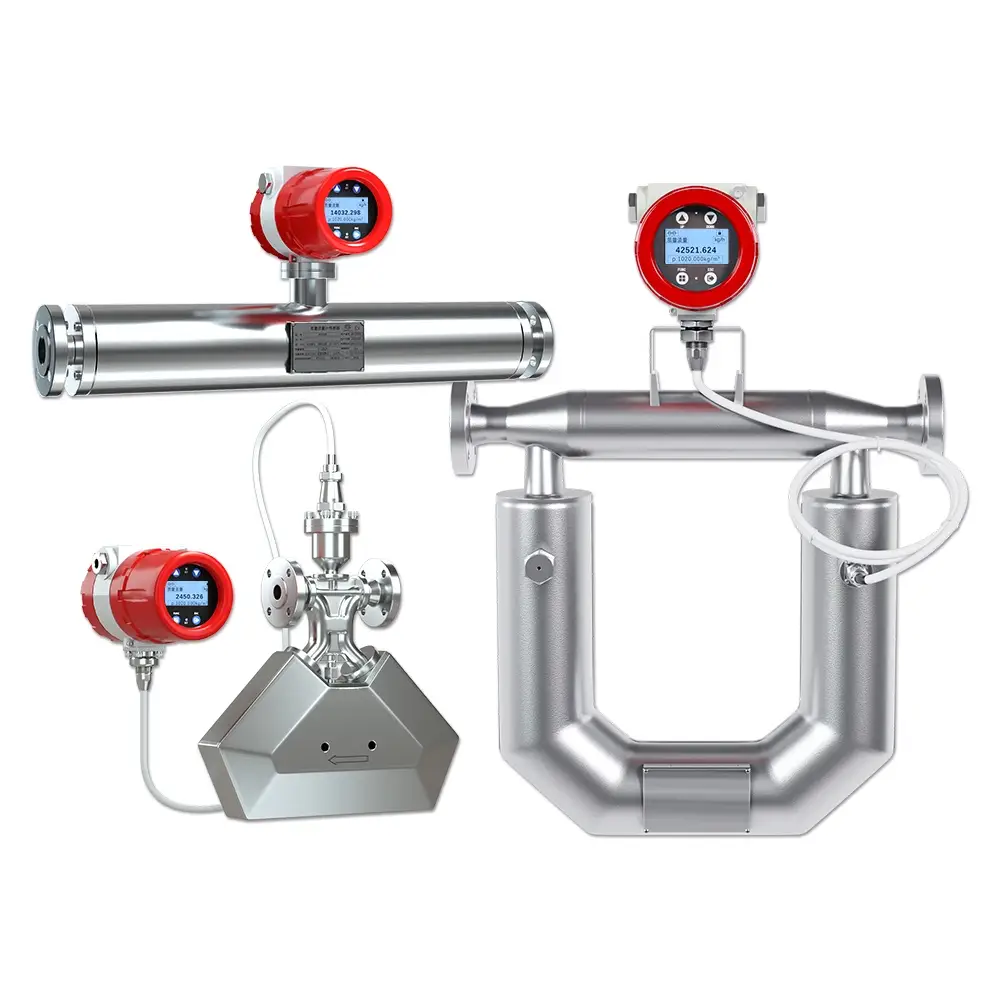

Diameter	U-type:DN20~DN150; Triangular:DN3~DN15; Straight Tube:DN8~DN80
Measurand	Mass flow,density,temperature
Density accuracy	earth 0.002g/cm³
Accuracy	0.1%,0.15%,0.2%
Temperature	-40~+60℃
Power consumption	<15W
Power supply	220VAC ; 24VDC
Signal output	4~20mA, RS485, HART
Ingress protection	IP67
Density range	(0.3~3.000)g/cm³
Repeatability	1/2 of the measurement error
Medium temperature	Standard type: (-50～200)℃, (-20～200)℃; High temperature type: (-50～350)°C; Low-temperature type: (-200～200)°C
Process pressure	(0~4.0)MPa
Humidity	35%~95%
Transmission output	(4～20) mA, output load (250～600) Ω

Component workshop

Calibration workshop

Product verification

MEJ-FCC-300

Coriolis Mass
Flow Meter

Can’t Decide? Talk to an Expert?
Have questions or would you like to speak
with an Instrument expert?

FAQs

1. Do you have a minimum order quantity?

Most products have no MOQ limit. For some special products, we will have requirements. For the products you need, you can contact us for confirmation.

2. Are Mejor products customizable to specific requirements?

Yes, Mejor products can be customized to specific requirements, including signal outputs, electrical connections, mounting options, and physical enclosures and so on. We capable to develop instruments tailored to your specific requirements of your special applications.

3. Can Mejor provide technical support and assistance during the installation and operation of its products?

Yes, Mejor provides technical support and assistance during the installation and operation of its products. We understand that customers may require guidance or assistance at various stages of the product lifecycle. And our technical support team is available to answer customer inquiries, provide instructions u0026amp; troubleshooting assistance, and address any technical issues that may arise. Customers can reach out us through emails, phones, or online chat. For after-sales issues, we will response within 1 hour and offer you satisfactory solutions.
