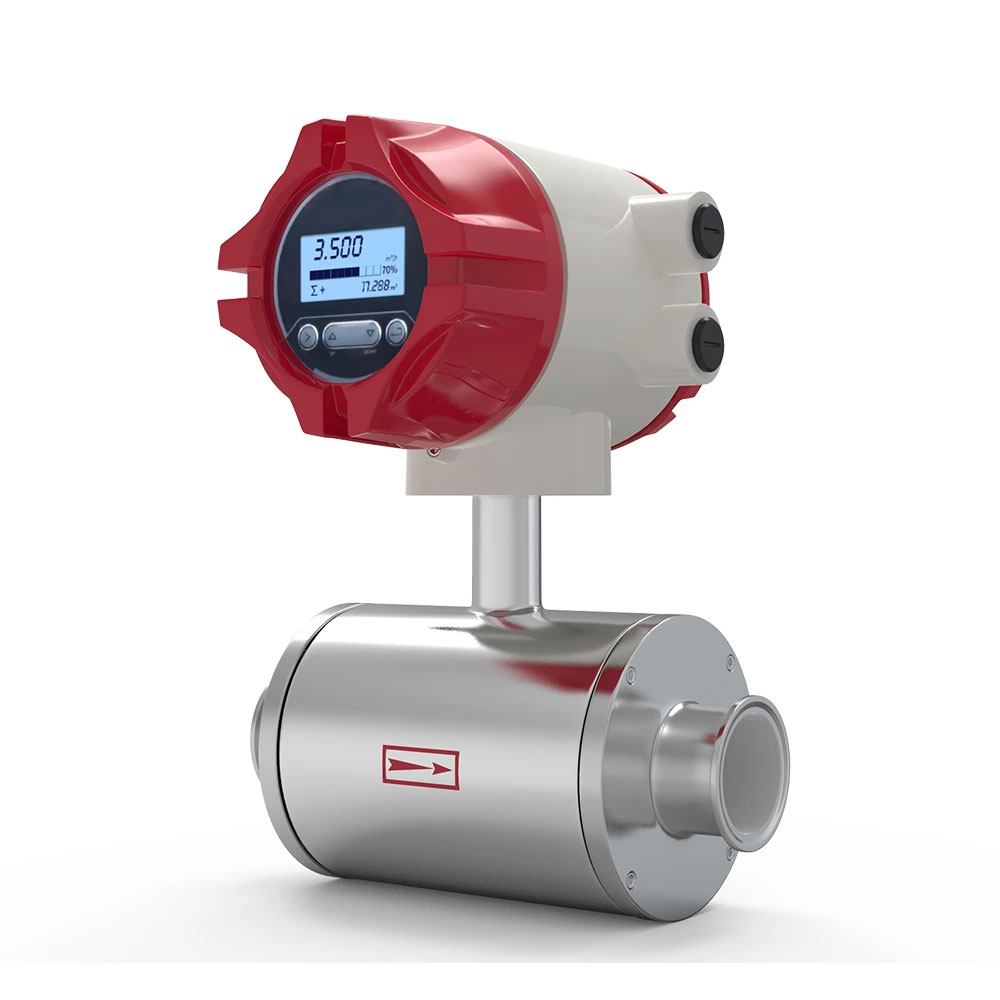

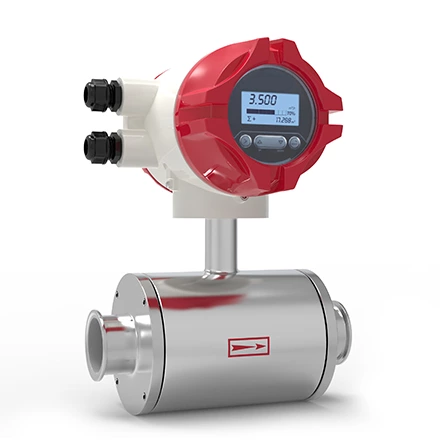

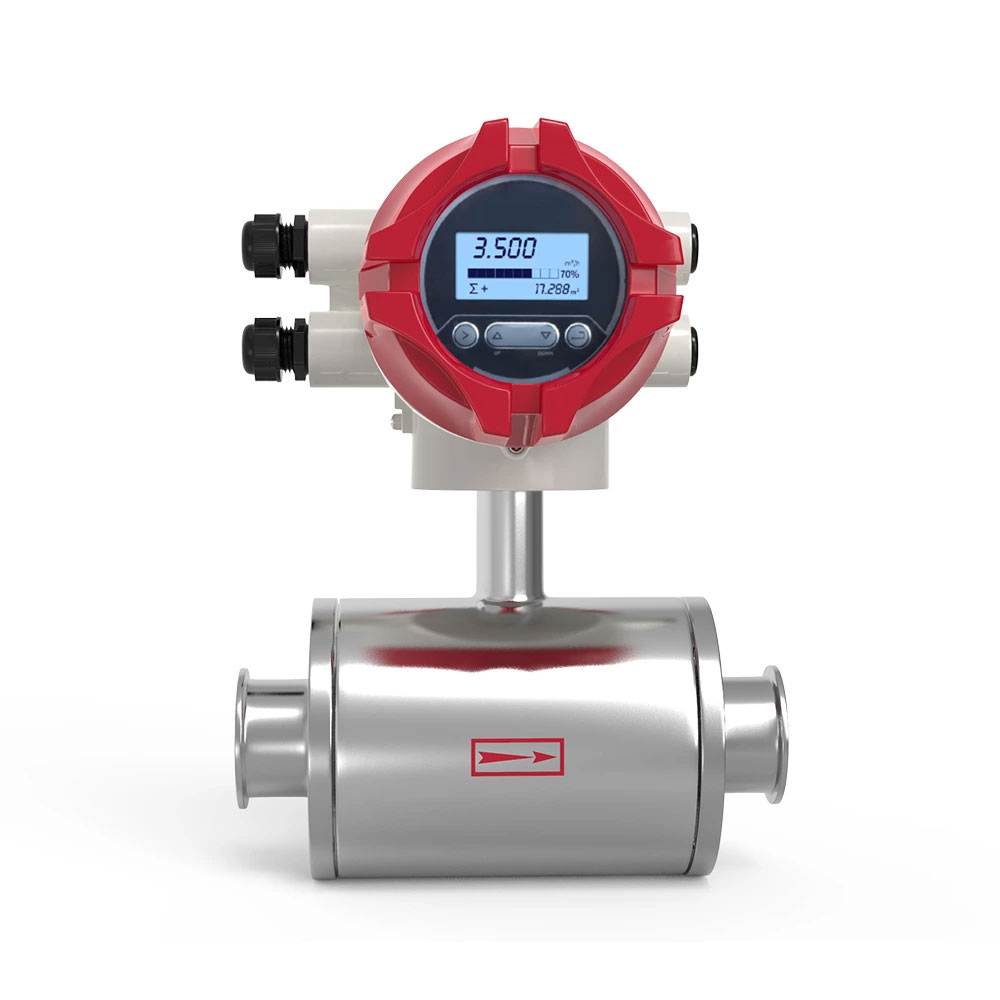

MEJ-LDG Sanitary electromagnetic flowmeter for food processing

MEJ-LDG Sanitary electromagnetic flowmeter for food processing is specially designed for the food industry, meeting the strict needs of the industry and having significant advantages.

Characteristics:
Accuracy: ±0.5%(Flow speed > 1m/s)
Reliably: 0.15%
Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: ＞30μS/cm
Flange: ANSI/JIS/DIN DN15…1000
Ingress protection: IP65

Introduction
Specification

MEJ-LDG Sanitary electromagnetic flowmeter for food processing is specially designed for the food industry, meeting the strict needs of the industry and having significant advantages.

MEJ-LDG Sanitary electromagnetic flowmeter for food processing adopts materials such as stainless steel and non-toxic rubber that meet food hygiene standards, with a smooth and easy to clean surface, which can effectively prevent the growth of bacteria;

Structural design without dead corners or retention, avoiding material residue and ensuring food purity;

High precision measurement ensures accurate production of ingredients; No mechanical moving parts, reducing wear and reducing the risk of failure;

MEJ-LDG Sanitary electromagnetic flowmeter for food processing also has a quick disassembly function, which facilitates regular deep cleaning and maintenance, meeting the production requirements of efficient and hygienic food processing.

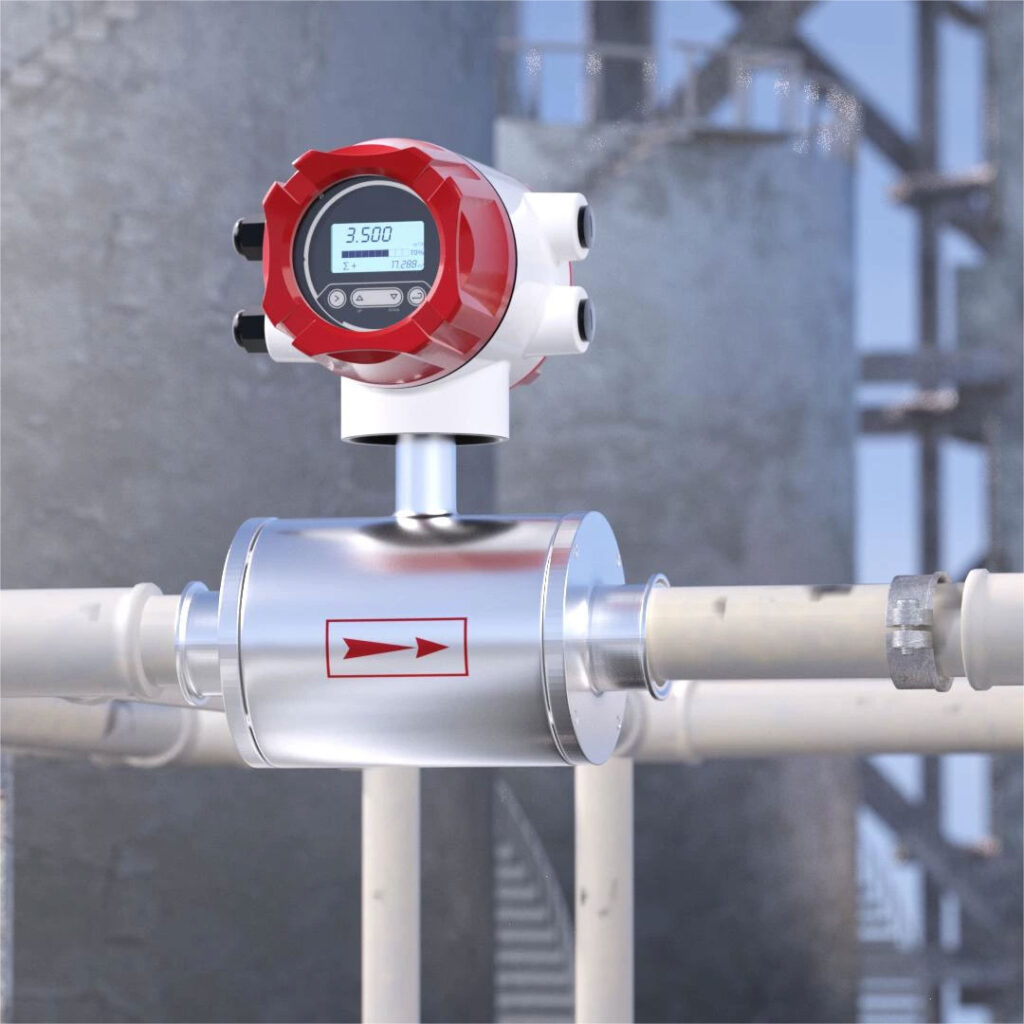

MEJ-LDG-Sanitary-electromagnetic-flowmeter-for-food-processing4

Product	Sanitary type electromagnetic flowmeter (magnetic flow meter)
Model	MEJ-LDGS
Diameter nominal	DN15~DN100
Nominal pressure	0.6~4.0MPa
Accuracy	±0.5%，±2mm/s(flowrate<1m/s)
Repetitiveness	0.2%
Liner material	PFA, F46, Neoprene, PTFE, FEP
Electrode material	Stainless steel SUS316L, Hastelloy C, Titanium,
	Tantalum, Platinum-iridium
Medium temperature	Integral type: -10℃~80℃
	Split type: -25℃~180℃
Ambient temperature	-10℃~55℃
Power supply	100-240VAC，50/60Hz / 22VDC—26VDC
Electrical conductivity	Water 20μS/cm other medium 5μS/cm
Ingress protection	IP65, IP68(optional)
Product standard	JB/T 9248-2015
